How do I view the results?

Tudor -

Maps Made Easy makes a web viewable map that includes the photo layer and a colorized elevation layer. That is the best way to share the map since it doesn't require any additional software and can be freely shared.

Each map also gets a web preview of the 3D model which can also be shared.

If you need to view the output files we recommend the following:

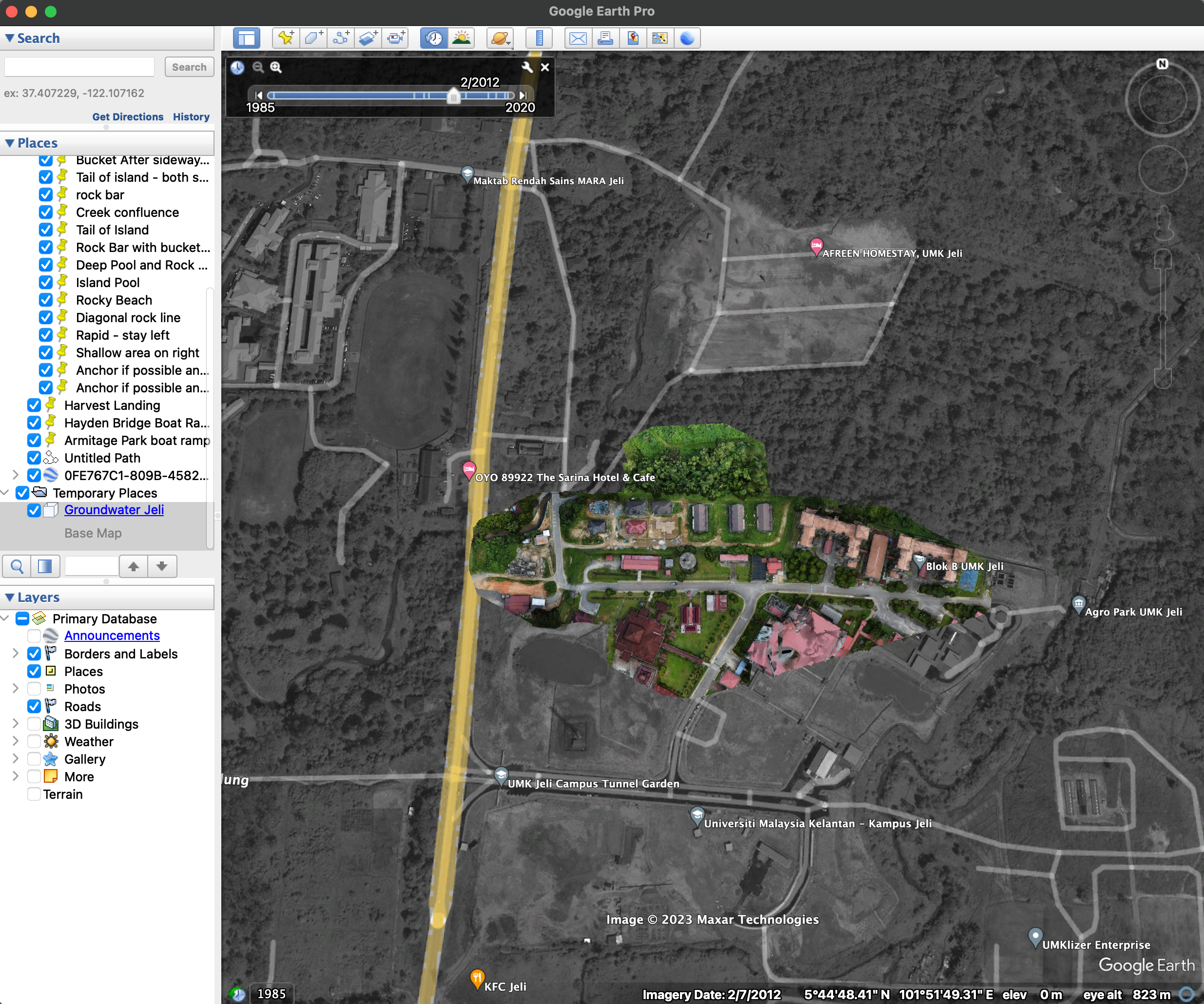

To open the KML and KMZ files use Google Earth. It can take a while for the file to load. Sometimes it is necessary to adjust the altitude of the model if it shows up under the Google Earth surface.

Screenshot 2024-01-05 at 8.20.02 AM.png


To open the orthophoto/DEM GeoTiffs use QGIS



To open the point cloud LAS use CloudCompare.



To open the full resolution 3D model OBJ use MeshLab. The OBJ, MTL and JPG textures all need to be downloaded into the same folder. Then just 'Import Mesh' and select the OBJ file. The files cannot be renamed.



Other file viewers such as Photos, Photoshop or GIMP may not be capable of handling the large images here so use of GIS software is highly recommended.
